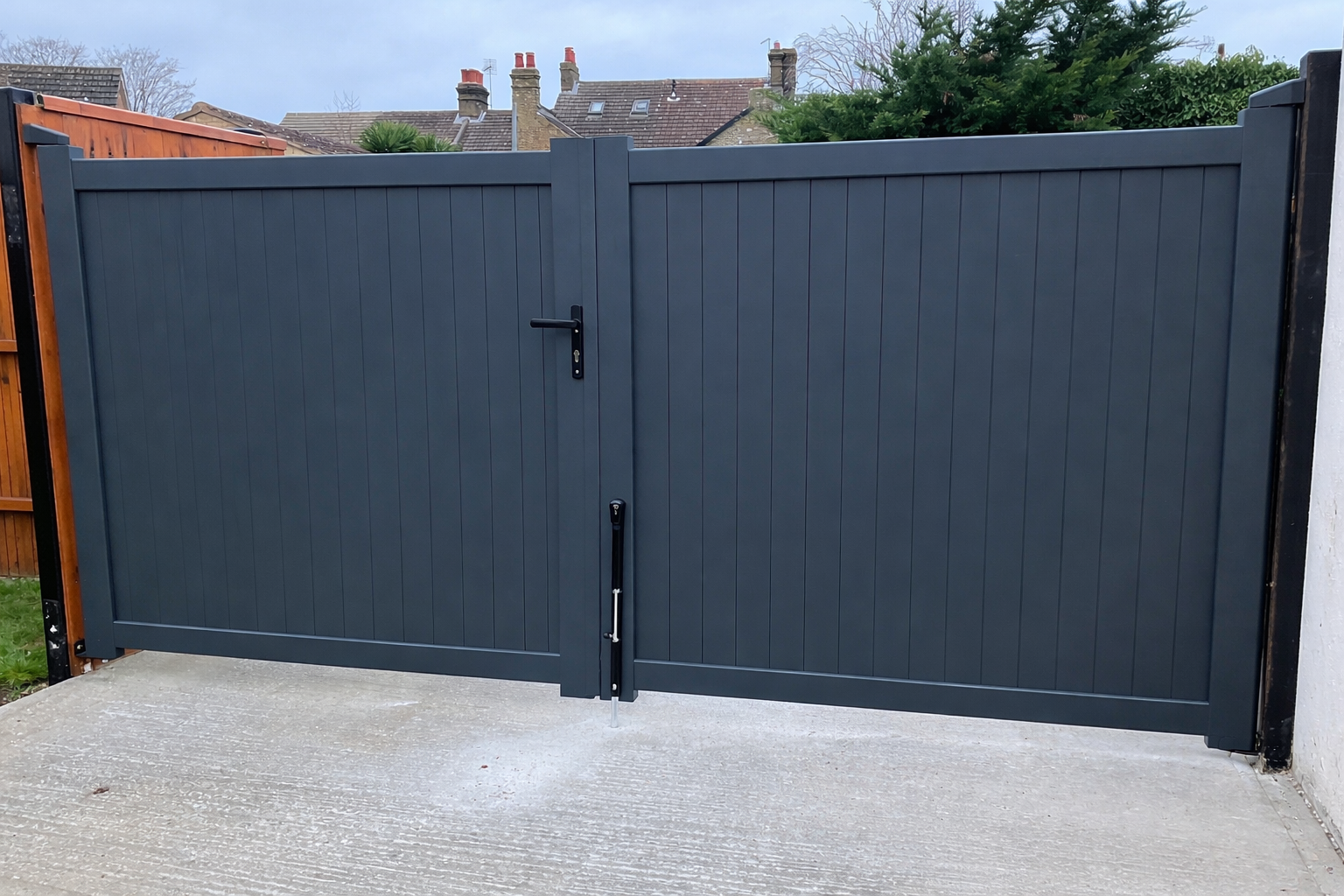

Byfleet Aluminium Gates
Prices start at £1,148.14
Aluminium gates which retain the tradition look of wooden gates, yet due to their sharp looks and powder coated finishes, makes them not only suitable for older properties but more modern contemporary properties.
- No movement, rotting or repainting.
- Maintenance free, just a wipe down with a soapy cloth will bring them looking like new.
- 5 Years warranty on powder coating a structural integrity of gates
- Various design, colours & sizes to choose from.
- Lightweight
- Other professional spray paint colours available with a 5 year warranty P.O.A
- Suitable for highly saline environments, no special surface treatment required before or after installation
- Availability for standard size gates generally 2 to 3 weeks
- Availability for modified gates generally 3 to 4 weeks, although will be confirmed when ordering
For an additional cost these gates can be modified in width to suit un-standard openings.
All aluminium gates can be professionally paint sprayed to a RAL colour of your choice, with a 5 year warranty at an additional cost.
Aluminium gates which are being automated, we would strongly suggest using a metal spreader plate (not supplied) either side of the gates, where the arm is attached and bolted all the way through, for extra strength. This mainly applies to our, Dulwich, Hersham, Byfleet, Beverley, Cobham, Petworth, Goring, Esher, Longleat and Wimbledon aluminium gates. You shouldn’t mount automation arms etc to aluminium gate boarding.
Free of charge delivery for Aluminium gates to mainland UK is included in the prices listed.
Click a toggle below to find out more…
Matching aluminium flanged posts are available and can be used in the following instances;
- Stand alone: For when there is no wall to mount the gates to.
- To fill a gap if the width of the entrance does not match the available gates.
Posts can be cut to required size and finished off with the corresponding aluminium post cap. Posts can be bolted down using the flanged base or concreted in if no stable ground is available.
Aluminium wall plates lock and hinge side
- Easy to mount against house wall or piers.
- Height adjustable mounting points for hinges.
- Height adjustable lock keep, which slides inside wall plate lock side.
- 2.0m & 2.4m height available which can be cut on site to suit height of gate.
- Removeable bottom flange.
- Move photos and information can be viewed in our gallery section for wall plates.
Wall plates can be cut on site to suitable lengths, by removing bottom base plate and then cutting to length, although if you want reattached base plate this will need to be tapped to take bolts and isn’t something we do. As wall plates are mounted to walls, the base plate isn’t generally used or required.
Five-year warranty powder coating.
All posts can be professionally paint sprayed to a RAL colour of your choice, with a 5 year warranty at an additional cost.
Posts (inclusive of caps) and Wall plates are available in the following sizes and colours:
Posts & Wall Plate Prices include VAT
| Code | Size / Colour | Unit Price |
| 01p | 100mm x 100mm x 2400mm Aluminium post Black | £101.34 |
| 02p | 100mm x 100mm x 2400mm Aluminium post Grey | £101.34 |
| 01ap | 100mm x 100mm x 3000mm Aluminium post Black | £124.05 |
| 02ap | 100mm x 100mm x 3000mm Aluminium post Grey | £124.05 |
| 04p | 150mm x 150mm x 2400mm Aluminium post Black | £149.39 |
| 05p | 150mm x 150mm x 2400mm Aluminium post Grey | £149.39 |
| 07p | 150mm x 150mm x 3000mm Aluminium post Black | £171.23 |
| 08p | 150mm x 150mm x 3000mm Aluminium post Grey | £171.23 |
| 10p | 150mm x 150mm x 2400mm Heavy duty aluminium post Black | £186.95 |
| 13p | 150mm x 150mm x 3000mm Heavy duty aluminium post Black | £216.65 |
| 14p | 80mm x 50mm x 2000mm Wall plate hinge side Black | £80.38 |
| 15p | 80mm x 50mm x 2000mm Wall plate hinge side Grey | £80.38 |
| 16p | 80mm x 50mm x 2400mm Wall plate hinge side Black | £88.23 |
| 17p | 80mm x 50mm x 2400mm Wall plate hinge side Grey | £88.23 |
| 18p | 80mm x 50mm x 2000mm Wall plate lock Black | £80.38 |
| 19p | 80mm x 50mm x 2000mm Wall plate lock Grey | £80.38 |
| 20p | 80mm x 50mm x 2400mm Wall plate lock Black | £88.23 |
| 21p | 80mm x 50mm x 2400mm Wall plate lock Grey | £88.23 |
 |
 |
 Post (Black) |
 Post (Grey) |
 Post Caps for Posts |
All prices include VAT
|
Photos 1 & 2 – Wall mounted adjustable hinges supplied with gates, (replacement price £14.76 each)
Adjustable hinges with fixings, which can be fixed to aluminium, timber and steel post or brick piers. |
 |
Photo 3 – Floor/Surface hinges supplied with gate, (replacement price £12.50 each)
Adjustable floor/surface mounted hinge with fixings. |
 |
Photo 4 – Sash lock & handle set fitted £116.13
Fitted Sash lock with handle set in black, fitted to right hand leaf opening inwards unless otherwise advised/requested. Sash lock and handle set replacement only £40.19 |
 |
Photo 6-Locinox lockable drop bolt grey or black £62.40
First holes to fit the Locinox drop bolts on gates, should be drilled 80mm up from the bottom of the gates. We also recommend fitting Locinox drop bolts when gates are closed to site them correctly. Supplied Grey RAL7016 or Black RAL9005 |
 |
Photo 7 -Bolt down Central Ground Stop £39.00
Surface mounted design, suitable for surface mounted drop bolts. Maximum drop bolt axle diameter: Ø 20 mm. Adjustable in height: distance between finished ground level & bottom of the gate: 20 to 45 mm. Adjustable in depth, different gate profiles possible: VSA – VSF – Keydrop: 40 to 60 mm; Electradrop: 40 to 50 mm. (Anchor pins included) Material: polypropylene with black anodized aluminium top plate. |
 |
Photo 8-Hinge brackets sold in pairs £66.00
Hinge brackets are designed to hang gates on rear of brick piers, they are slotted to enable 18mm horizontal adjustment. More photo of these hinge brackets can be seen in our gallery section. |
 |
Photo 9-Aluminium Gate Hold Back Catch £28.08
Aluminium powder coated chassis, with anchoring holes for concrete. Height adjustability of the catch hook: 40mm. Stop rubber and poyamide catch hook to avoid damaging the gate frame. Stop rubber adjustable for gate profiles 40mm till 60mm. Reversibility of the catch hook: pre-mounted with hook up. Overall height 500mm. |
 |
Photo 10 – Thin wall bolts 35mm £7.02 each
These are an optional extra to make fitting bottom adjustable post mounted hinges easier. They can also be seen in our gallery attached to post. All prices inc VAT |
 |
Photo 11 – Rear Hanging Adjustable Hinge £30.00 (pair)
Dimensions 120mm (l) x 70mm (W) x 50mm (H) Metal components with black plastic casing To be used when fitting our double gates behind an existing brick pier or our aluminium posts, this hinge allows for lateral adjustment making installation easier. Hinges generally need to be 75mm centre fixed from edge of wall or post, so if you have an opening size 2990mm wide, gate size can be calculated in the following way. 2990mm Opening +75mm, +120mm which allows for 60mm either side as hinge point is off central to stiles which are 116mm, -10mm for gap between gates +75mm = size of gates 3250mm wide. |
Black (RAL9005) & Grey RAL7016
Profession spray paint finish, to a RAL colour of your choice:-
Pair of gates £390.00 inclusive of VAT
Posts and wall pates £39.00 each inclusive of VAT
More Information…
Fitting/Installation Instructions, showing what opening is required for gates to fit into.
- Click here for fitting instructions – Brick to brick (PDF)
- Click here for fitting Instructions – Wall/floor (PDF)
- Click here for fitting Instructions – Posts (PDF)
- Click here showing video, for fitting lock cover lips for automation on latest gates
Note: Fitting instructions are for Hersham, Dulwich, Byfleet, Cobham, Goring, Beverley, Petworth, Longleat & Esher.
Dimensions
Automation
Chester, York & Cambridge automated aluminium sliding will be supplied Roger technology automation motor built into post/tower (as per open image).
240v with 3 years warranty.
